Workbee - 1500x1500mm

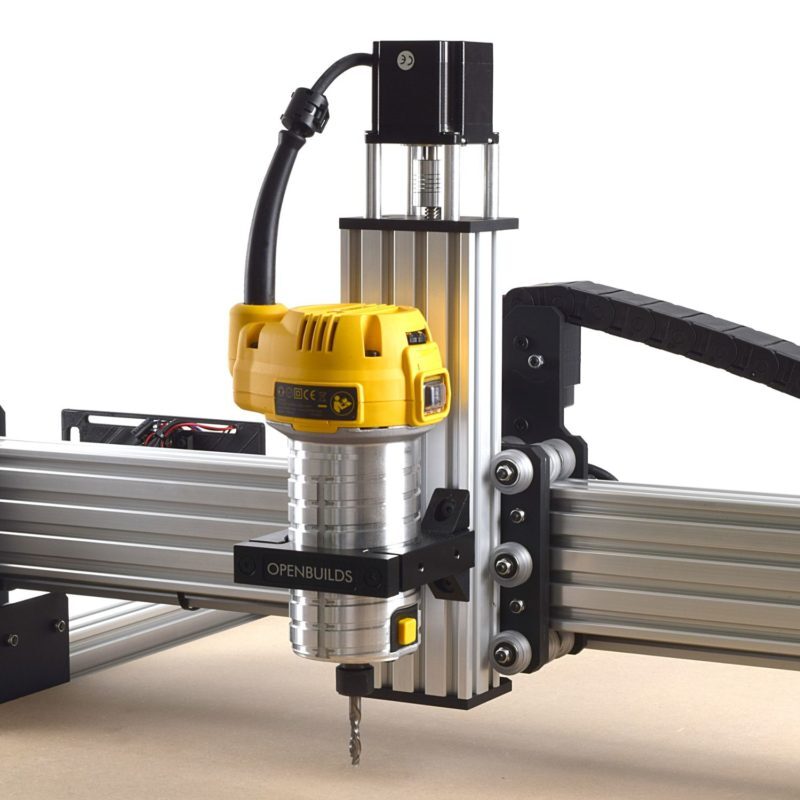

The WorkBee makes full use of the V-Slot Extrusion system. On the X and Y Axis, C-Beam extrusions are used. C-Beam allows the drive systems to be concealed from debris. The screws on the WorkBee CNC Kit are inside the ‘C’ channel and therefore shielded from the cutting area.
The WorkBee CNC Machine uses Xtreme Solid V Wheels which are manufactured from super hard polycarbonate. This reduces wheel compression, and keeps wear to a minimum. The plates are manufactured from 6mm aluminium and have a protective anodised coating.
The WorkBee CNC Machine is a screw drive system, the first of it’s kind in this price range. One issue with a screw drive system is that it could be limited in size to 1000x1000mm. This size limitation was not acceptable. Therefore we have designed a screw tensioning system for the WorkBee. This tensioning system is used on sizes above 1000x1000mm and allows us to provide a screw drive system for WorkBee sizes up to and including 1500x1500mm.
