Stepcraft

Stepcraft-2 D840

STEPCRAFT-2 D.840 SPECS

CLAMPING SURFACE (X,Y): 24.09" x 36.22" (612x920mm)
WORKING SPACE (X,Y,Z): 23.62" x 33.07" x 5.51" (600x840x140mm)
PASSAGE HEIGHT: 6.89" (175mm)
REPEATABILITY: +- .0019" (.05mm)
PROGRAMMABLE RESOLUTION: .00019" (.005mm)
BACKLASH: Approx. .001-003" (With software - adjustable to 0.00")
MAXIMUM SPEED: 118.11 in/min (3000mm/min or 50mm/sec)
SPINDLE OPTIONS: STEPCRAFT HF500, STEPCRAFT MM-1000, Dremel 4000, Proxxon IBS/E, Dewalt DW611, Bosch Colt, Kress 800 FME
LINEAR GUIDE: STEPCRAFT Custom aluminum extrusion (EN AW-6063 T66) with roller guides
DRIVE: Nanotec® Stepper motors (3)
Universal Tool Holder Diameter: 1.69: (43mm)
OVERALL SIZE: 38.19″ x 29.53″ x 20.08″ (970 x 750 x 510mm)
WEIGHT: 68.34 lbs. (31 kg)
MACHINE TABLE: HPL (Formica laminate) - Optional Aluminum T-slot
INPUT VOLTAGE (AC): 100-240V (110V standard in North America and Mexico)
OUTPUT VOLTAGE (DC): 30V
POWER CONSUMPTION: 90W
INTERFACE: USB or Parallel
SOFTWARE: UCCNC (Included), WinPC-NC (Optional), Mach 3/4 (Optional)

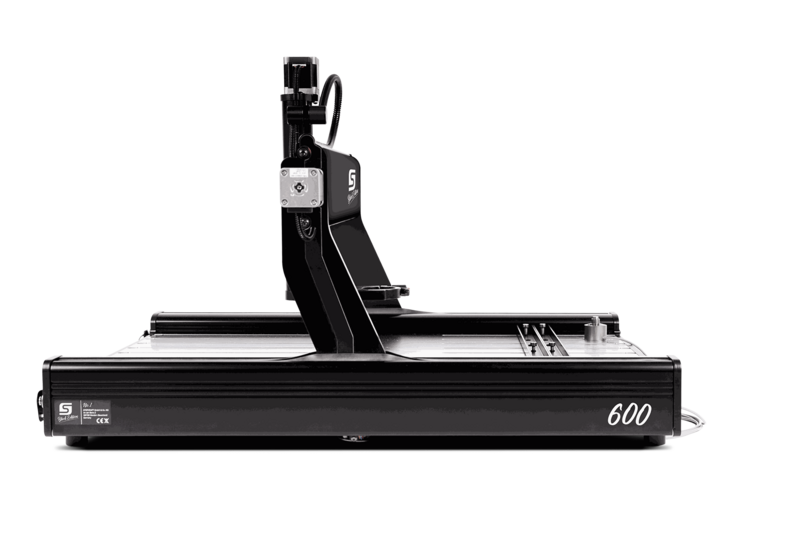

2219
