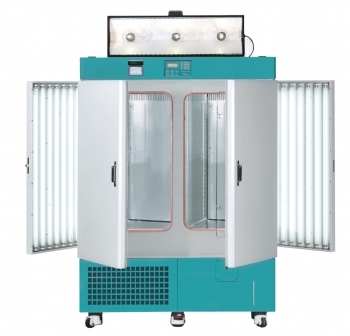

Plant Growth Chambers
Performance
General control system
5℃to 50℃(lamp off) / 10℃to 50℃. (lamp on)
Max. to 35,000Lux for GC-1000.
Max. to 20,000Lux for GC-300 Models.
40 to 80% RH for GC-300TLH. (at 20 to 35℃)
50 to 90% RH for GC-1000TLH. (at 20 to 35℃)
Max. 5,000ppm CO2 on/off system. (optional)
Microprocessor PID control / Temperature calibration / Automatic tuning.
10 step programmable temperature, humidity, and illumination profiles and repeatable steps of up to 999 cycles.
Illuminance control system
Uniformed luminescence distribution.
Broad distribution of side lamps for hastening the growth of plants.
High intensity illumination of upper lamp for light efficient and low thermal load. (for GC-1000TLH/1000TL)
Unique construction for minimization of heat increase from surrounding lamps.
- Tempered glass door blocks heated air from lamps.
- Designed to exhaust heated air through upper vent holes. (for GC-1000TLH)
Stable and long lasting lighting through introduction of high frequency electronic ballast lamps.
Convenience
Ergonomically designed door construction.
- Inner glass door with silicone and external door with magnetic sealing for dual airtight packing.
- Well designed providing a smooth open for minimization of damage to plants.
Wide inner tempered glass door for clear observation of plant growth without affecting inner chamber’s environment.
Tall plants can be grown inside of the chamber with adjustment of shelve level.
Maintenance of water supply are easily performed with a front water tank. (GC-1000TLH)
- Water level check indicated by water level bar in the tank.
Water supply during operation is also available for long term test purposes.
Adjustable water tank position. (for GC-300TLH)
Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
- Maintenance of air filter no longer cumbersome with our detachable condenser air filter.
Casters for easy mobility during installation or relocation.
Eco-friendly CFC-free refrigerant use.
