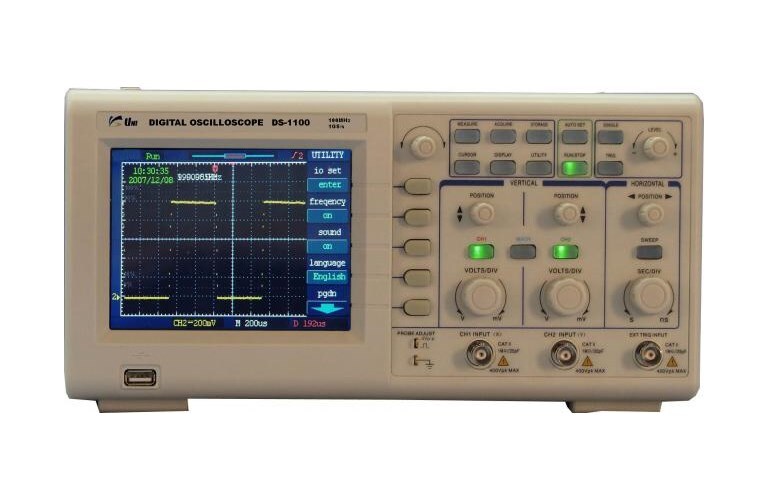

DS-1100 Digital Storage Oscilloscope for 100 MHz, 2 Ch

100MHz, 2 Channel, 1GS/s Realtime Sampling, 50GS/s Repetitive Sampling, Color LCD Display, 1M Memory, USB Storage, RS232C And J45 Interface, 4,000 point record length per CH, Math And FFT Function, Delay Sweep Function, Cursor And Track measurement, Waveform Record And Recall, with 2 probe
Features
100 MHz bandwidth, 1 M Memory
500MS/s to 1GS/s real-time sample rate
50GS/s sample rate for repetitive waveforms
1M Memory
2mV/div to 50V/div Vertical Sensitivity
High resolution color LCD display
USB storage, RS232C , optional J45 interface
4000 point record length for each channel
Multi-waveforms math, FFT Function
Built-in delay sweep function
Automatic Multi-waveform Measurement
Cursor & Track measurement
Waveform Record & Recall
Trigger Mode for Edge, Video, Pulse Width, Slope & Alternate
Pass & Failure for ordinary setting and waveform setting
Calibration Signal with optional frequency of 1KHz,10KHz &100KHz
10 groups of waveform storage, CSV storage, 10 groups of setting and position storage
